Google Cloud Platform Installation

Plakar Control Plane is distributed on Google Cloud Platform as a custom image hosted under the (plakar-images) project. Because the image lives outside your own project, GCP requires explicit authorization before it can be used, and this authorization works differently depending on whether you deploy through the Console or the gcloud CLI.

Getting access to the image

GCP images can only be shared with projects, domains, or individual accounts that the image owner has explicitly authorized. The Console’s instance-creation flow relies on this authorization to browse and select an image, so it only works for accounts Plakar has whitelisted, either by domain or by an email address.

  • gcloud CLI: works without any whitelisting, because referencing an image by name and project doesn’t require the browsing permissions the Console UI needs. This is the recommended path for most users, since it doesn’t depend on Plakar granting access first.
  • Console (UI): contact us to have your Google account or Workspace domain added to the plakar-images project’s IAM policy. Once whitelisted, the project appears when browsing custom images, and the rest of the deployment can be done by clicking through the Console.

The gcloud CLI can reference the plakar-images project directly, without requiring the domain-whitelisting the Console needs:

Shell
gcloud compute instances create <INSTANCE_NAME> \
  --project=<YOUR_PROJECT> \
  --zone=<ZONE> \
  --machine-type=n2-standard-4 \
  --image=control-plane-v-0-0-3 \
  --image-project=plakar-images \
  --boot-disk-size=10GB \
  --boot-disk-type=pd-balanced \
  --create-disk=name=<INSTANCE_NAME>-data,size=1024GB,type=pd-balanced \
  --tags=http-server \
  --service-account=<SERVICE_ACCOUNT_EMAIL> \
  --scopes=cloud-platform

  • --machine-type=n2-standard-4 matches the S tier of Appliance Sizing.

  • --image and --image-project reference the Plakar Control Plane image by name, which works regardless of whitelisting.

  • --create-disk provisions the data disk that holds the database, logs, and all Plakar state, separate from wherever you configure backups themselves to be stored. Set its size to the data disk size given in Appliance Sizing.

  • --service-account and --scopes attach a service account to the instance, which lets Plakar Control Plane authenticate to Google Cloud services such as inventories and secret providers without a service account key. Both flags are optional if you plan to use service account keys instead. When attaching a service account, --scopes=cloud-platform is required: without it, the instance uses the default access scopes, which block some APIs regardless of the service account’s IAM roles. See Attaching the Service Account to an Instance.

  • --tags=http-server applies the tag GCP’s default network firewall rule uses to allow inbound HTTP traffic. If your project doesn’t have that default rule, create one explicitly:

    Shell
    gcloud compute firewall-rules create allow-http \
  --network=<NETWORK> \
  --allow=tcp:80 \
  --target-tags=http-server \
  --source-ranges=0.0.0.0/0
    Warning

    Restrict --source-ranges to trusted IP ranges, your organization’s gateway, or a VPN in production. 0.0.0.0/0 allows access from any address and should only be used for testing or temporary deployments.

  • To use Spot provisioning instead of Standard, add --provisioning-model=SPOT. Spot instances run until preempted by GCP, which makes them a fit for fault-tolerant workloads but not for a Control Plane instance, which needs to run continuously.

Once the instance is created, it can be viewed and managed from Compute Engine → VM instances in the Console like any other instance.

Note

This path requires your Google account or domain to already be whitelisted on the plakar-images project. If it isn’t, use the CLI tab instead, or contact us to request access.

Compute instances can be created from Compute Engine → VM instances then click on Create Instance to create a new instance.

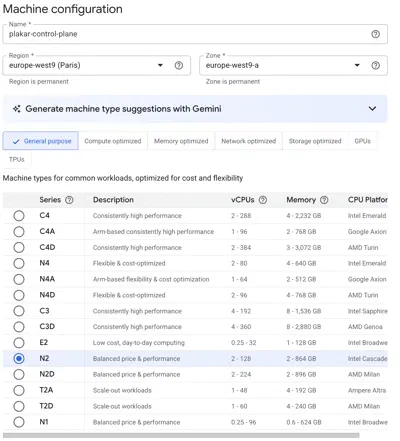

Machine configuration

Provide the instance a name, and choose the region and zone where it should run. You then need to select an instance type for running control plane on.

Size the instance according to Appliance Sizing, which gives the CPU, memory and disks for each size of deployment. For the S tier, a preset such as n2-standard-4 is suitable.

Under Provisioning model, choose Standard for a persistent deployment. Spot VMs run until preempted by GCP, which makes them a fit for fault-tolerant workloads but not for a Control Plane instance, which needs to run continuously.

OS and storage

By default, GCP proposes a generic Debian image. This needs to be replaced with the Plakar Control Plane image:

  1. Under Boot disk, click Change.
  2. Select the Custom images tab.
  3. Under Source project for image, click Change, and select plakar-images from the list of projects your account has been granted access to. If the project doesn’t appear here, your account hasn’t been whitelisted yet. See getting access to the image above.
  4. Select the latest available image (currently control-plane-v-0-0-3).

For the boot disk itself, any of the available persistent disk types (Balanced, SSD, Extreme, or Standard) will work. It only needs the system disk size given in Appliance Sizing, since the appliance’s state is stored on a separate data disk.

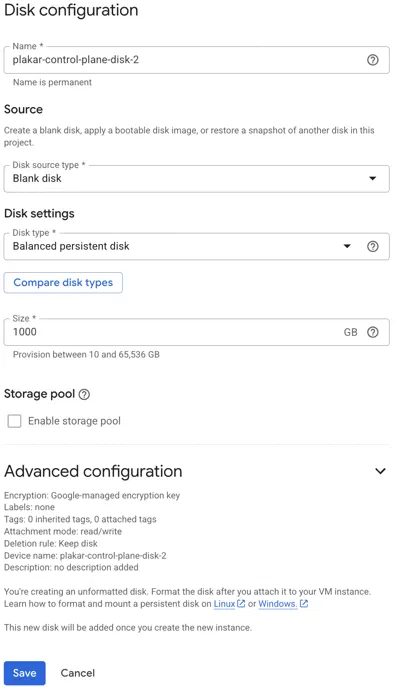

Additional disk

The database, logs, and all Plakar state are stored on a dedicated data disk, separate from wherever you configure backups to be stored:

  1. Under Additional disks, click Add new disk.
  2. Leave the disk source blank so GCP creates a new, empty disk.
  3. Set the size to the data disk size given in Appliance Sizing.
  4. Choose a disk type. Balanced, SSD, Extreme, Standard, and Hyperdisk are all supported; pick whichever matches your performance and cost requirements.

The remaining disk settings (snapshot schedule and deletion behavior) can be left at their defaults.

Data protection

Choose the snapshot or backup schedule that matches your organization’s data protection requirements for this instance.

Networking

Plakar Control Plane is served through a web UI over HTTP. For HTTPS, place a load balancer in front of the instance to handle TLS termination. Configure firewall rules, network tags, and IP settings according to your organization’s network policy. At minimum, Allow HTTP traffic needs to be enabled for the web UI to be reachable once the instance is running.

Security

To let Plakar Control Plane authenticate to Google Cloud services without a service account key, select the service account under Identity and API access, and set access scopes to allow full access to all Cloud APIs. The default access scopes block some APIs regardless of the service account’s IAM roles. See Attaching the Service Account to an Instance. This is optional if you plan to use service account keys instead.

Note

Full access only allows the instance to reach Google Cloud APIs. It does not grant any permissions: what the instance can actually do is still determined by the IAM roles assigned to its service account.

The Observability and Advanced tabs can be configured according to your organization’s standards, as neither is required for a working deployment.

Click Create once the configuration is complete.

Configuring the Appliance

An instance with direct internet access needs no configuration. For anything else, such as a proxy or registry mirrors, the appliance reads its settings from the user-data key of the instance metadata, set when the instance is created. The keys of the document are described in Appliance Configuration.

With the gcloud CLI, save the document to a file and add it to the gcloud compute instances create command:

Shell
--metadata-from-file=user-data=user-data.yaml

In the Console, open Advanced while creating the instance, then add a metadata item under Metadata with the key user-data and the document as its value.

If the appliance goes through a proxy or firewall, the hosts it has to reach are listed in required outbound access.

The document below sets every key except ssh_authorized_keys, which the Google Cloud image ignores. Remove the ones your environment does not need, each key is optional.

YAML
#cloud-config
proxy:
  http: http://proxy.corp.example:3128
  https: http://proxy.corp.example:3128
  no_proxy: .corp.example

registry:
  mirrors:
    docker.io: harbor.corp.example/dockerhub-proxy
    ghcr.io: harbor.corp.example/ghcr-proxy
  insecure: false

releases:
  url: https://dist.corp.example/plakar/enterprise
  version: v1.1.2

ntp:
  servers:
    - 10.20.0.1
    - ntp.corp.example

network:
  ethernets:
    eth0:
      addresses: [10.0.1.5/24]
      gateway4: 10.0.1.1
      nameservers:
        addresses: [10.0.1.53]

Accessing Plakar Control Plane

Once the instance is running, Plakar Control Plane is reached from a browser at http://<external-ip>, the external IP address of the instance.

For first-time installations, you will be guided through the enrollment process to:

  • Register the instance with Plakar services for licensing and billing
  • Create the initial administrator account

See the enrollment documentation for more details.

Limitations

The Google Cloud image does not accept SSH connections, and it ignores SSH keys, whether they come from the instance metadata or from ssh_authorized_keys in the user data. The appliance is administered entirely through the web interface.
